Ascher Racing 8″ Dashboard

Description

Everything at a glance. Our dashboards with high-grade cases made from CNC-machined aluminum look irresistibly good. And they are also state-of-the-art. Thanks to the compatibility with SimHub, you can configure your dashboard individually for each race and for each simulation.

• 8“ Widescreen Dashboard
• 7.85″ high-resolution display
• 16-bit colors, 350 lm brightness

• Touch operation possible

• 26x RGB LEDs (16 million colors), 5 x 16 x 5 configuration

• Official SimHub integration

• Smallest possible dimensions (<18mm wide)

• Mounting via carbon bracket or ¼” thread possible

FEATURES

Engineered with a Focus on Performance
Engineered to enhance your pace! The 8″ DDU features the brightest LEDs on the market and a high-power USB-C connection with extremely high bandwidth. 26 RGB LEDs with 16 million colors act as shift and indicator lights. The LEDs follow the new Ascher Racing SteadiColor philosophy which offer unmatched color stability in very low brightness settings while being mounted in individual housings, to prevent any light bleed.



Even More at a Glance

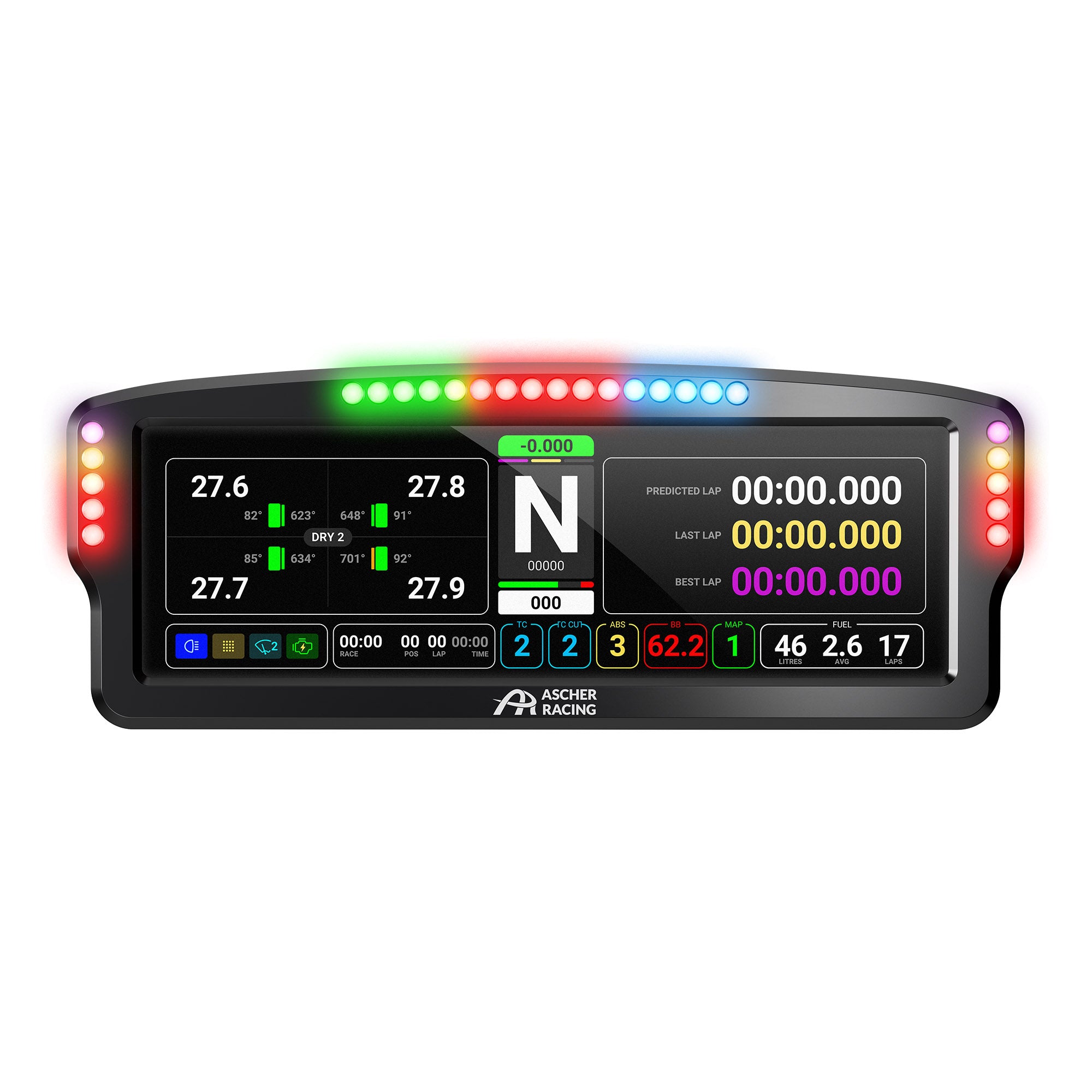

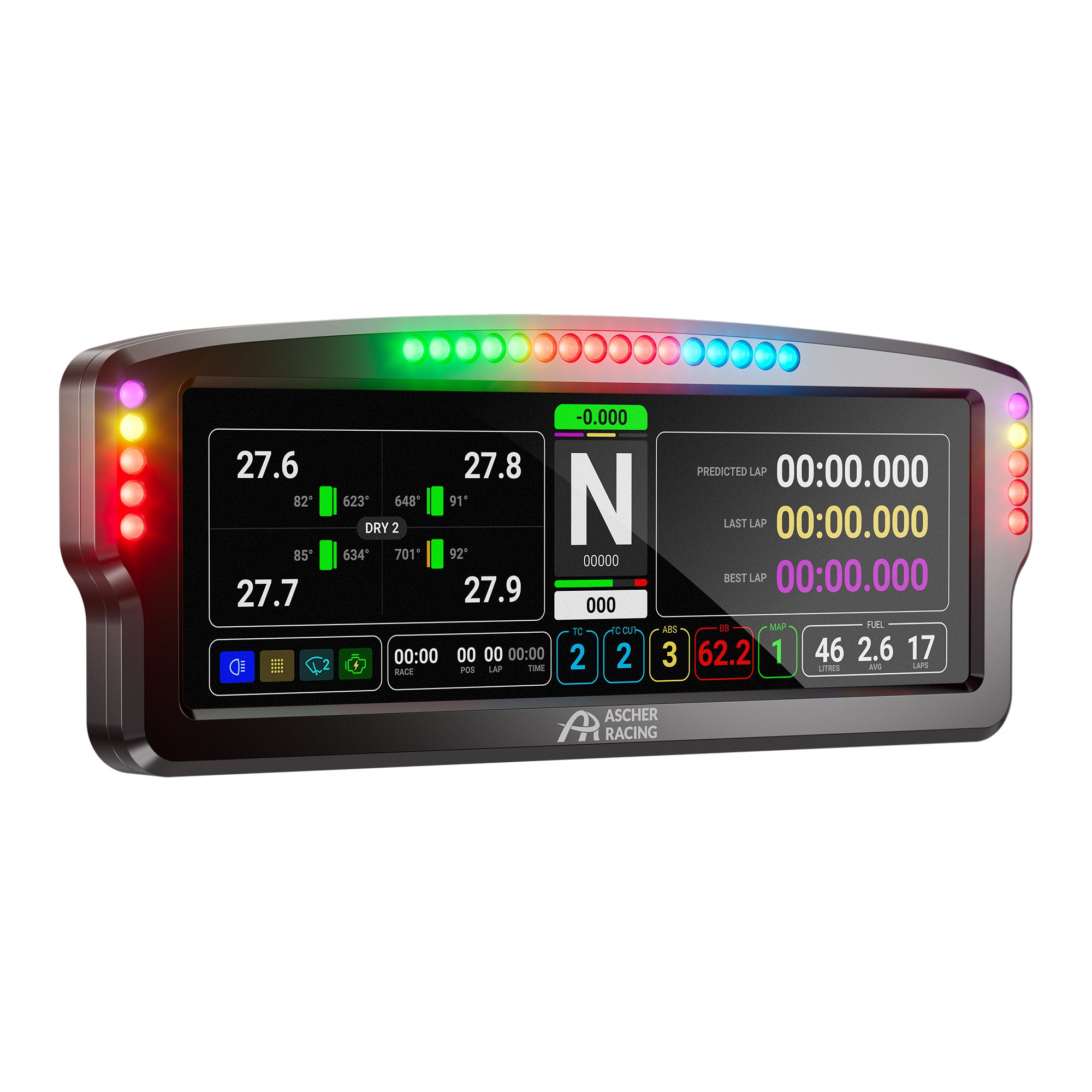

All data is shown in real time at a 1.200×400 resolution — giving you the perfect overview of all necessary details about your race and car. Thanks to the official SimHub integration, dashboard and LEDs can be configured individually, giving you complete freedom to adjust everything to your needs. The integrated 16-bit color display delivers a bright 350 lumens, and its resistive touchscreen can be operated without removing your racing gloves.



Compact & Performance Oriented Design
The 8” dashboard has been designed to be extremely compact, with the main housing only being 18 mm thick. Due to the performance-oriented form factor the 8″ widescreen fits perfectly in front of your screen, only covering the lower field of view and giving you maximum visibility. Optically the DDU integrates seamlessly with our wheels and button plates.



CNC-Machined Housing: The Known Ascher Racing Quality
Unlike many competing products, the housing of the 8” DDU isn’t 3D-printed—it’s fully CNC-machined from aluminum and anodized in black, giving it the well-known Ascher Racing high-quality finish. Power is supplied via the included angled USB-C cable on the back, where the on/off pushbutton is also conveniently located.



Unlimited Compatibility
¼” mount on the back of the housing allows for unlimited compatibility and freedom
when placing your 8” dashboard. Scope of delivery includes two carbon mounting plates suitable for the most common high-end wheelbases, such as Simucube 1, 2, and 3.

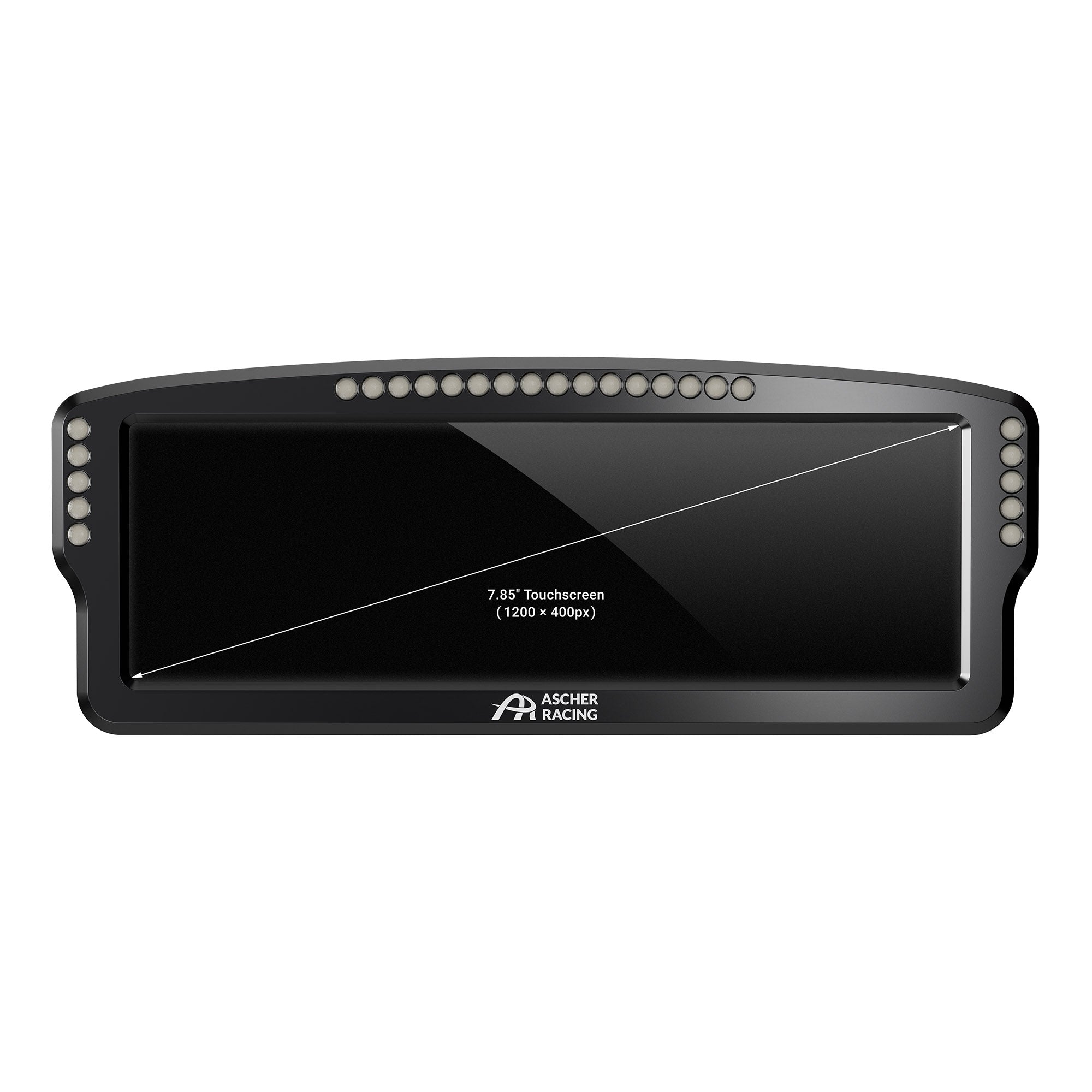

7.85“ Touchscreen
Powerful 16-bit color display with 350 lumens and resistive touchscreen that can be operated without removing racing gloves. All data is shown in real time at 1.200×400 resolution.

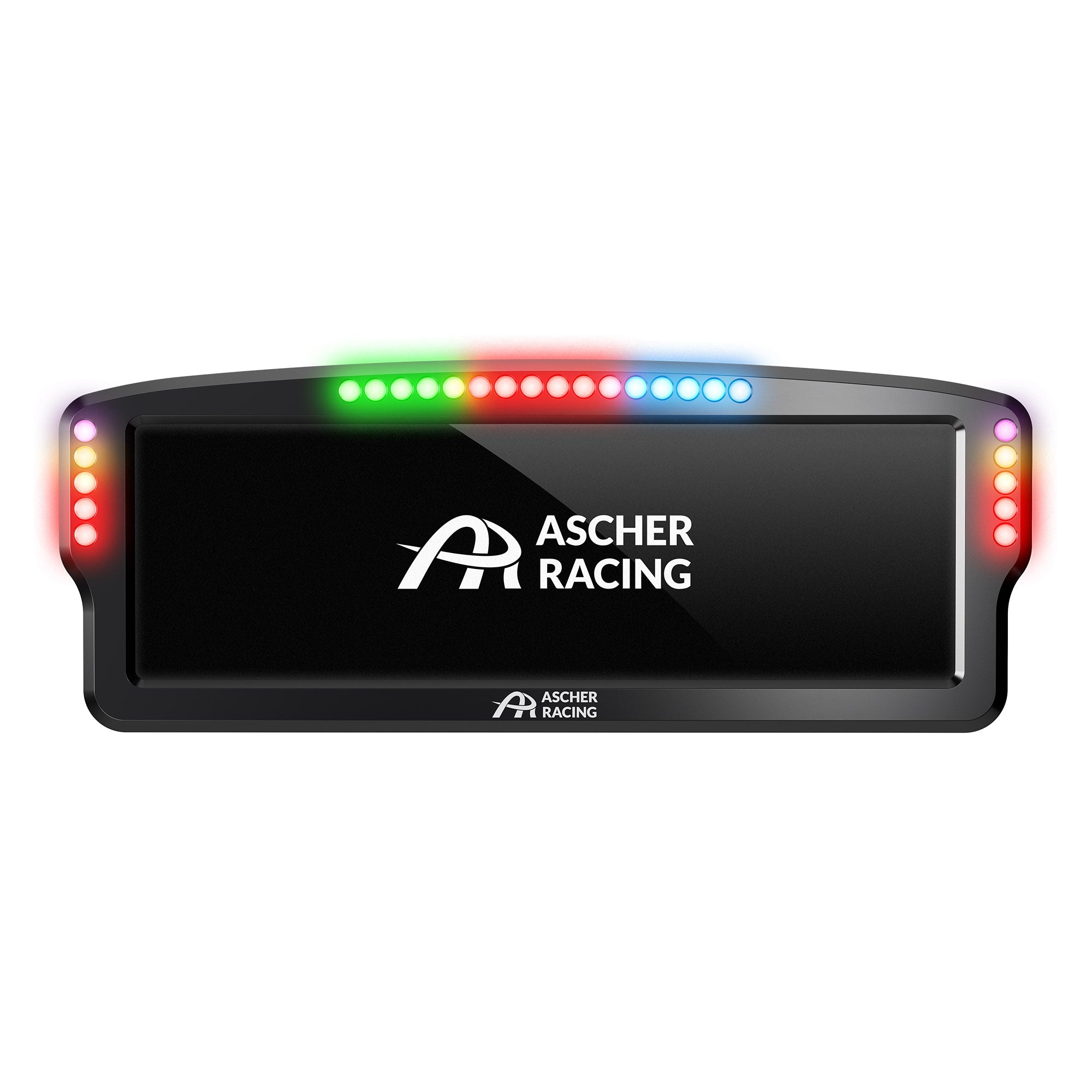

26x RGB LEDs
16 x RGB LEDs with 16 million colors act as shift lights, 10x RGB LEDs as flag LEDs (5x16x5 configuration). Ascher Racing SteadiColor philosophy offers an unmatched color stability in very low brightness settings.



USB-C Port
The high bandwidth USB-C port on the back of the housing offers a steady power and data connection. The included cable is angled to fit in tight spaces.



On/Off Pushbutton
Separate ON-OFF pushbutton is hidden on the back of the housing to enable an individual operation next to SimHub.



Mounting Options
Two carbon mounting brackets for the most common wheelbases are included in the scope of delivery, further compatibility is achieved with the ¼” mount on the back of the housing.



SimHub Integration
The official SimHub integration ensures an easy setup with presets while also offering unlimited freedom with the setup of your dashboard.



LSR Collaboration
Our collaboration with Lovely Sim Racing offers many neat features for the DDU, especially in combination with our Artura Series wheels.



SPECIFICATIONS

Housing Material	CNC-milled aluminum
Housing Dimensions	225.25 x 86.55 x 17.93mm (W x H x D)
Connection	USB-C
Power	5V / 3A
Display Size	7.85″ high-resolution screen
Resolution	1280 x 400 px
Color Depth	24-bit / 16-bit
Refresh Rate	Up to 60Hz
Screen Response	Capacitive multi-touch (2-point)
LEDs	26 RGB LEDs total (16 RPM + 10 Flag LEDs) 16.7 million colors (24-bit) Extremely bright, ideal for shift light and flag signals Horizontal + vertical layout for maximum visibility No light bleed between LEDs
Build Quality	CNC-milled & anodized automotive-grade aluminum Compact form factor with angled USB-C cable Single-cable connection
Compatibility	Carbon hardware mounts included for: Simucube 1 / 2 / 3 Fanatec wheelbases VRS DirectForce Pro Asetek wheelbases Simagic Alpha MiGE & Lenze motors ¼” thread on the back for custom mounting solutions / universal use
Software Integration	Official SimHub integration Compatible with all major racing simulations Preconfigured Ascher Racing dash layouts & LED profiles Examples: iRacing: vehicle-specific LED profiles with telemetry-optimized, gear-dependent shift points Clutch pop-ups for Ascher Racing F64 USB / SC wheels Unlimited customization (telemetry values, formulas, etc.) User-friendly dashboard editor
In the Box	Carbon mounting bracket Required screws Aluminum spacers for adjustable distance Dashboard (8″) Pre-installed Ascher Racing dash design & LED profile
