Ascher Racing Dashboard

Description

DESCRIPTION

Everything at a glance. Our dashboards with high-grade cases made from CNC-machined aluminum look irresistibly good. And the are also state-of-the-art. Thanks to the compatibility with SimHub, you can configure your dashboard individually for each race and for each simulation.

FEATURES

Compact Design. Powerful Display.

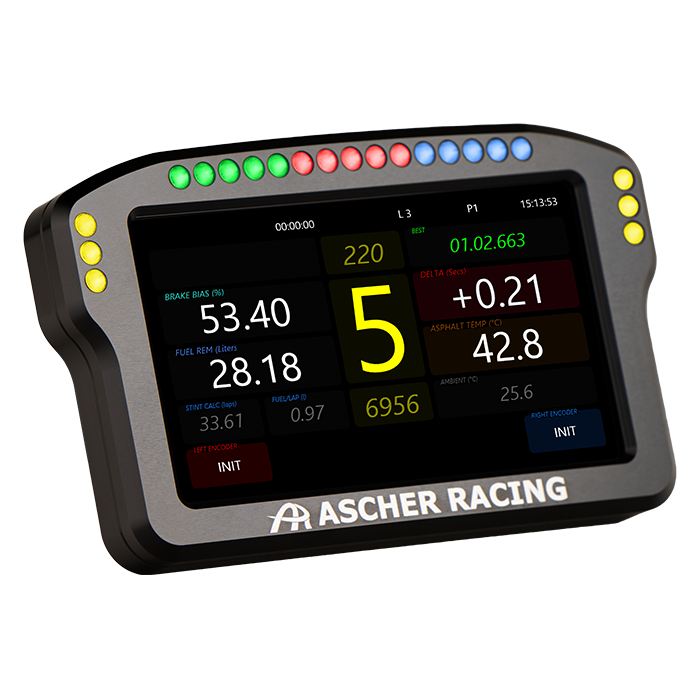

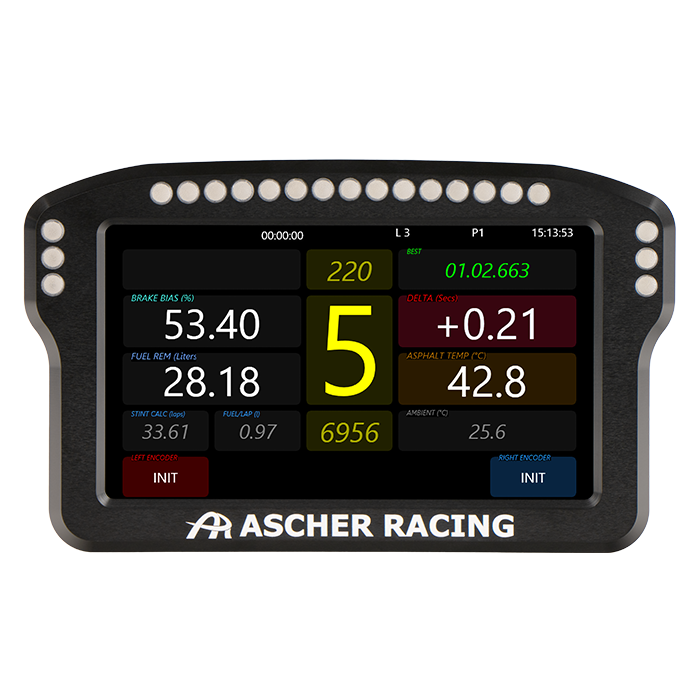

As the community of Ascher Racing is quite accustomed to, we have also invested a lot in engineering for our 4″ and 5″ dashboards. For example, the housing is made of aluminum. The LEDs are separated, and the 16-bit color display with a resistive touchscreen is easy to read with 350 lumens. Of course, you can operate the touchscreen with your racing gloves. All data is displayed in real-time on the touchscreen with a resolution of 800 x 480 pixels or 854 x 480 pixels. So, you have all the information about your race and race car at a glance!

Free Programmable and High Luminosity Display

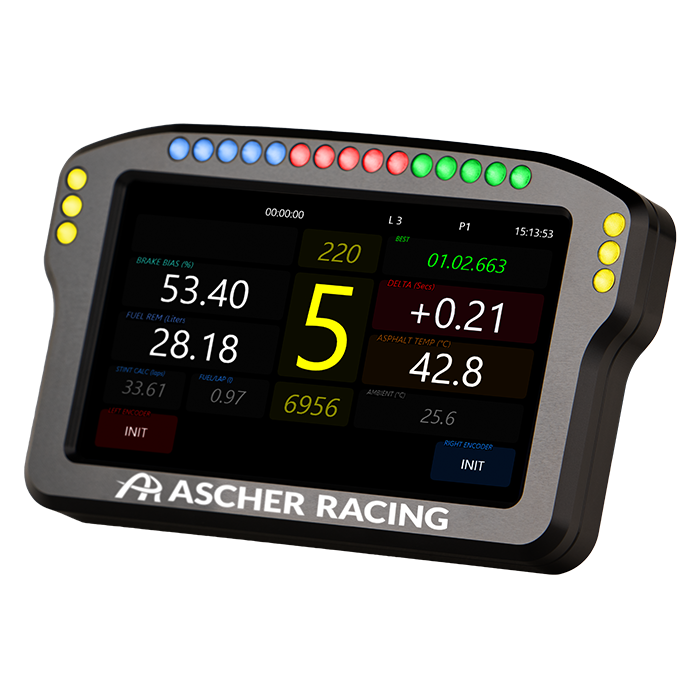

The 21 colored LEDs in the Ascher Racing Dashboards are each located in individual borings, which means that no light interference can occur. Thanks to the compatibility with SimHub, you can control and configure each LED individually. So you have all freedom to configure the LEDs for flag signals, fuel gauge, changing gears, or anything else on your dashboard LEDs. Each LED can display up to 16 million colors.

Real Ascher Racing
We at Ascher Racing never do things halfway and took our high-quality button plates and steering wheels as a pattern for our dashboards. Thus, the design of our dashboards fits harmoniously with our steering wheels. Due to the compatibility with SimHub, our dashboards are completely free programmable in their function. It’s up to you which telemetry data you want to display on the dashboard. Or you can use the countless dashboard presets from the community if you don’t feel like creating your display with the dash editor.

Anodized Aluminum for Best Quality

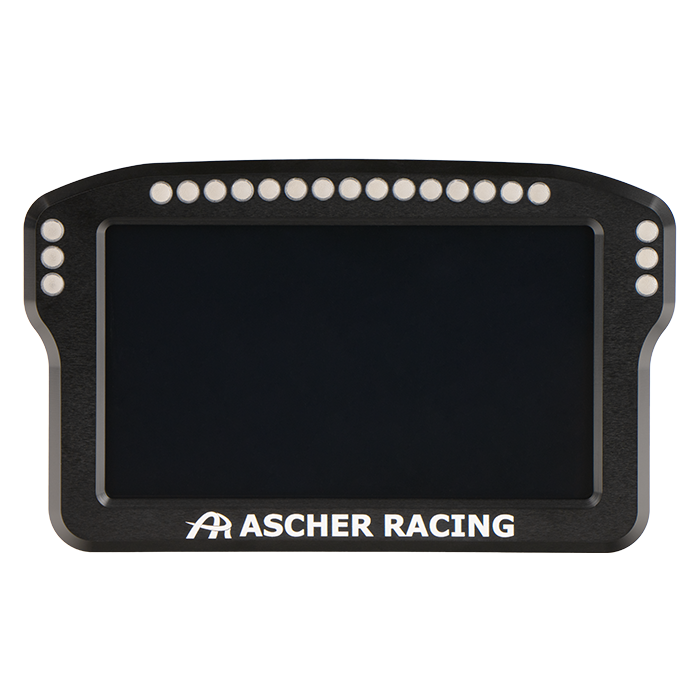

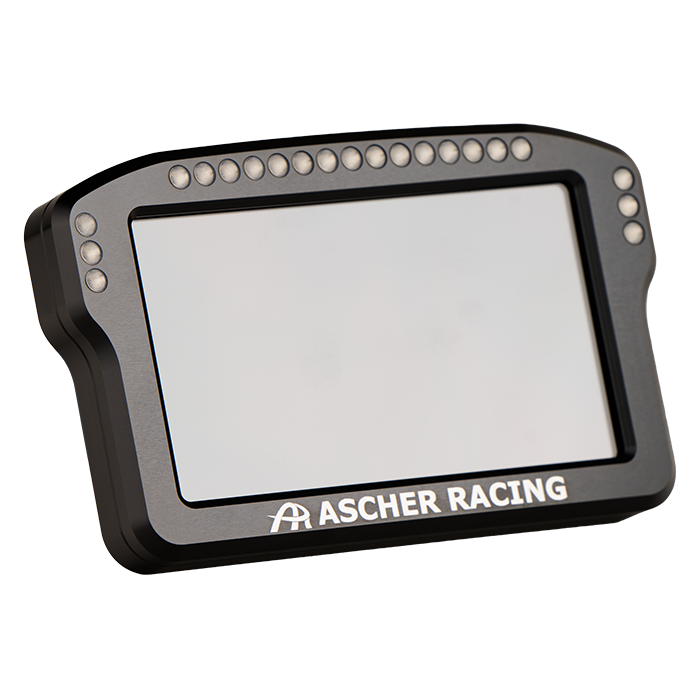

Our case does not come from a 3D printer, but we mill from aluminum. The anodized aluminum case is extreme compact and the entire display is only 18 millimeters strong. Whether you choose the 4″ or the 5″ dashboard, you can place both well in front of your screen. Power and data are supplied at the back via an included angled USB-C cable. We have also put the power button there.

LEDs
A total of 21 LEDs display up to 16 million colors. So that you have everything in view, we have arranged 15 diodes horizontally and three diodes vertically on each side of the display. So that the LEDs do not overlap in their colors, each diode sits in its own drilling.

USB-C
Power is supplied via a USB-C port. The included cable is of course angled.

On-Off Switch
Both dashboards have an on/off switch on the back.

SimHub Integration
For our Ascher Racing Dashboards, you can find numerous presets on SimHub or simply configure your own LED profiles or dashboard designs if you want something unique for yourself.

Mounting Brackets
Included are the matching carbon mounting brackets to mount the dashboard to various wheelbases such as SimuCube, Fanatec and Co.
